Top speed
80km/h
-
Range
12 km @ 80 km/h
-
Peak power
12kw
-
80% charge
2 Hours

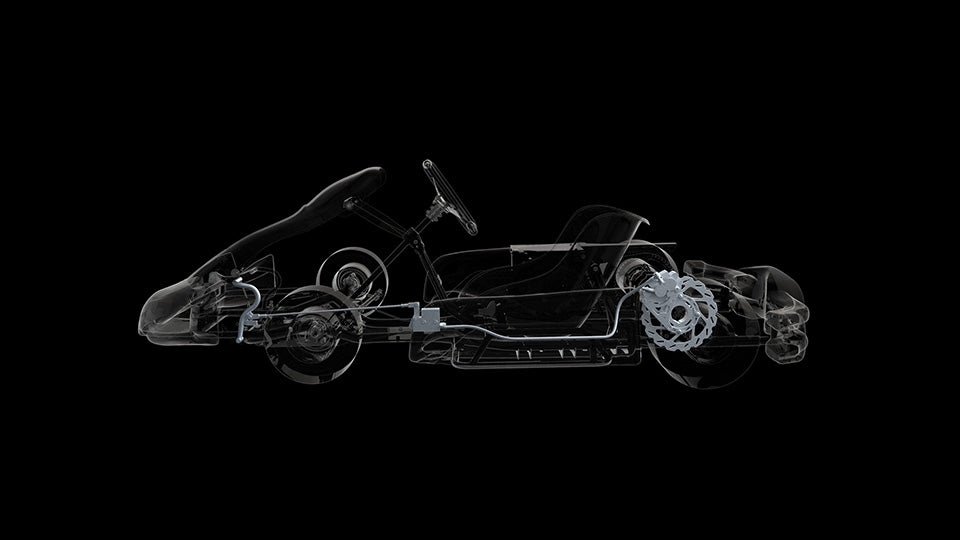

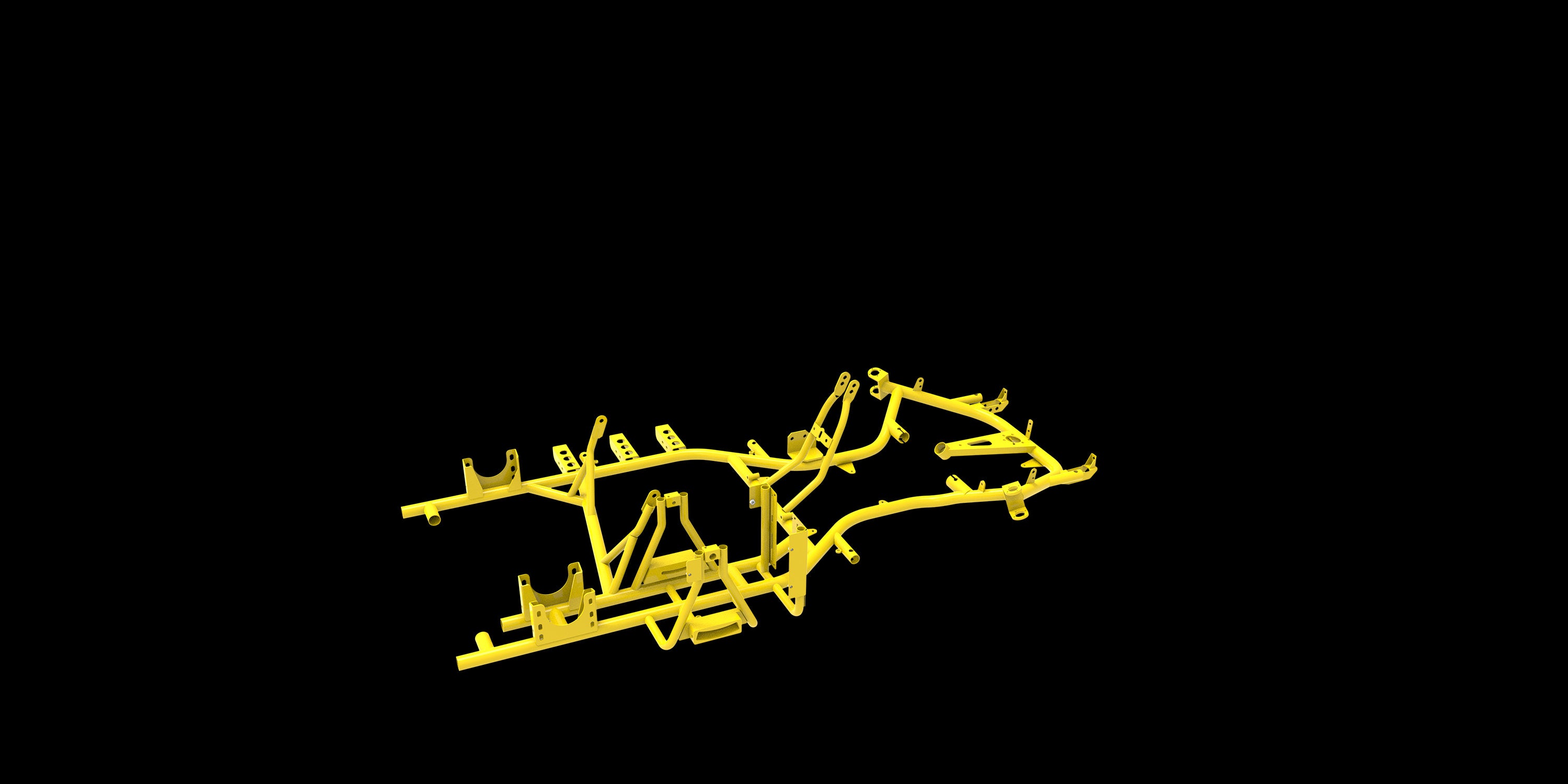

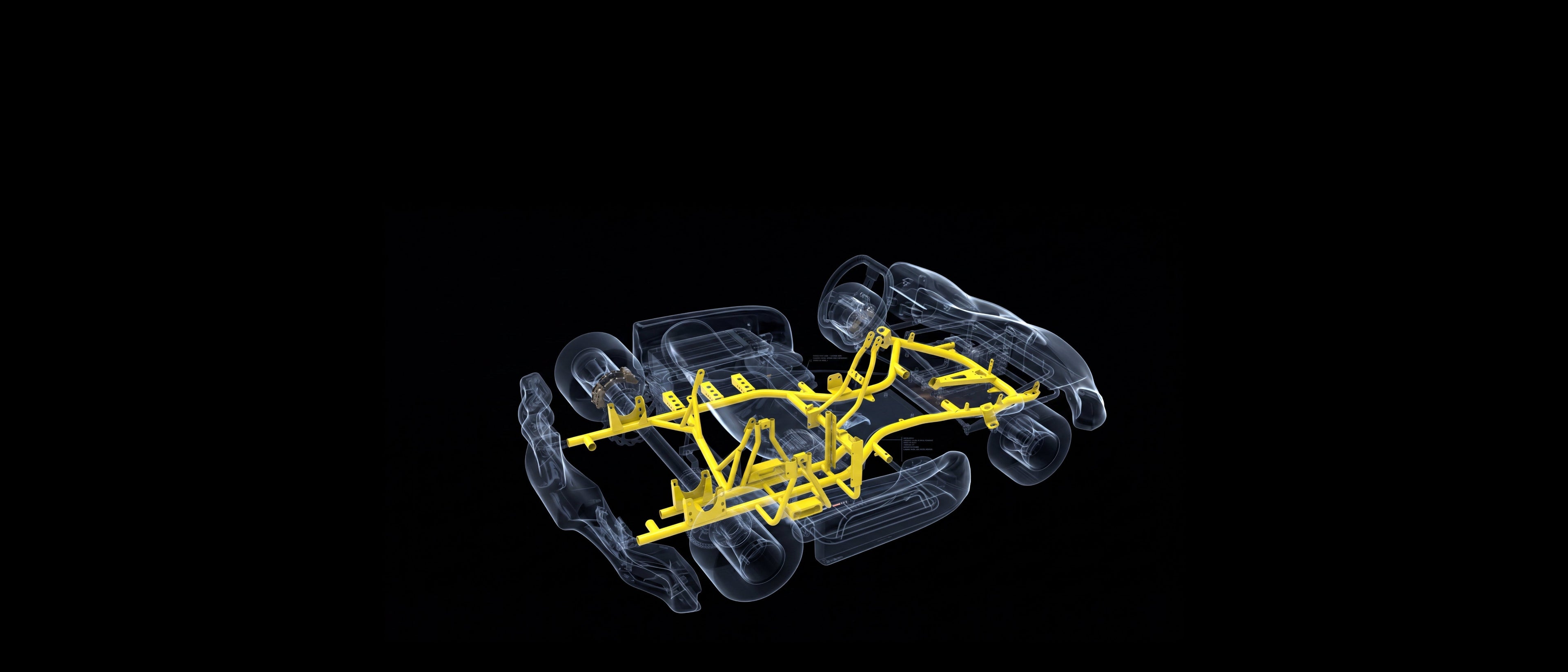

THE CHASSIS IS MADE OF 30MM AISI4130 ALLOY STEEL PIPES
4130 alloy steel has good strength and hardness, which can withstand the various forces and vibrations of the kart during high-speed operation. It can withstand the lateral forces applied by the driver during cornering, as well as the torque and impact forces transmitted by the wheels and suspension system. It is relatively lightweight compared to other steels.
DESIGNED AS SUPERCARS

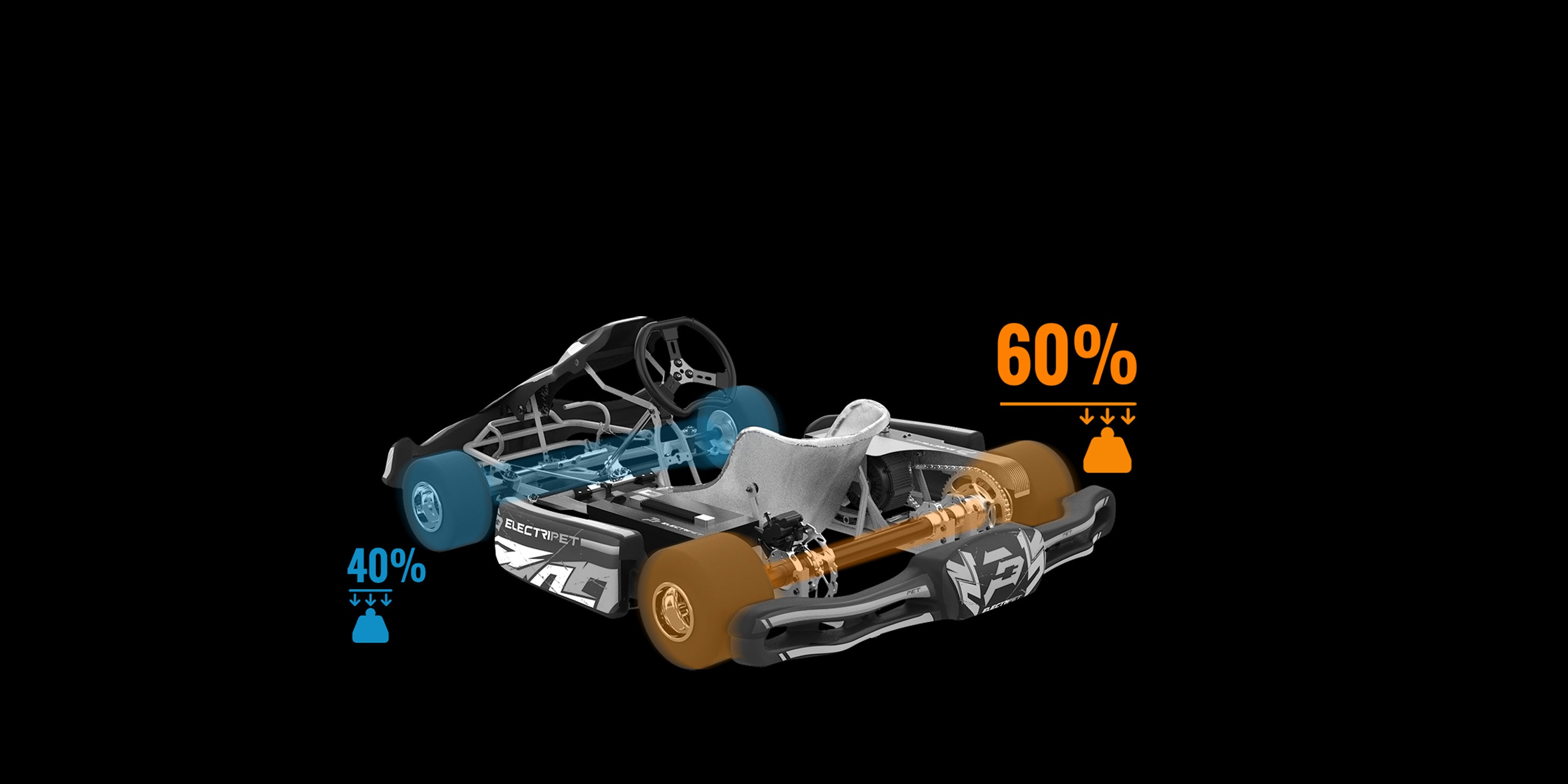

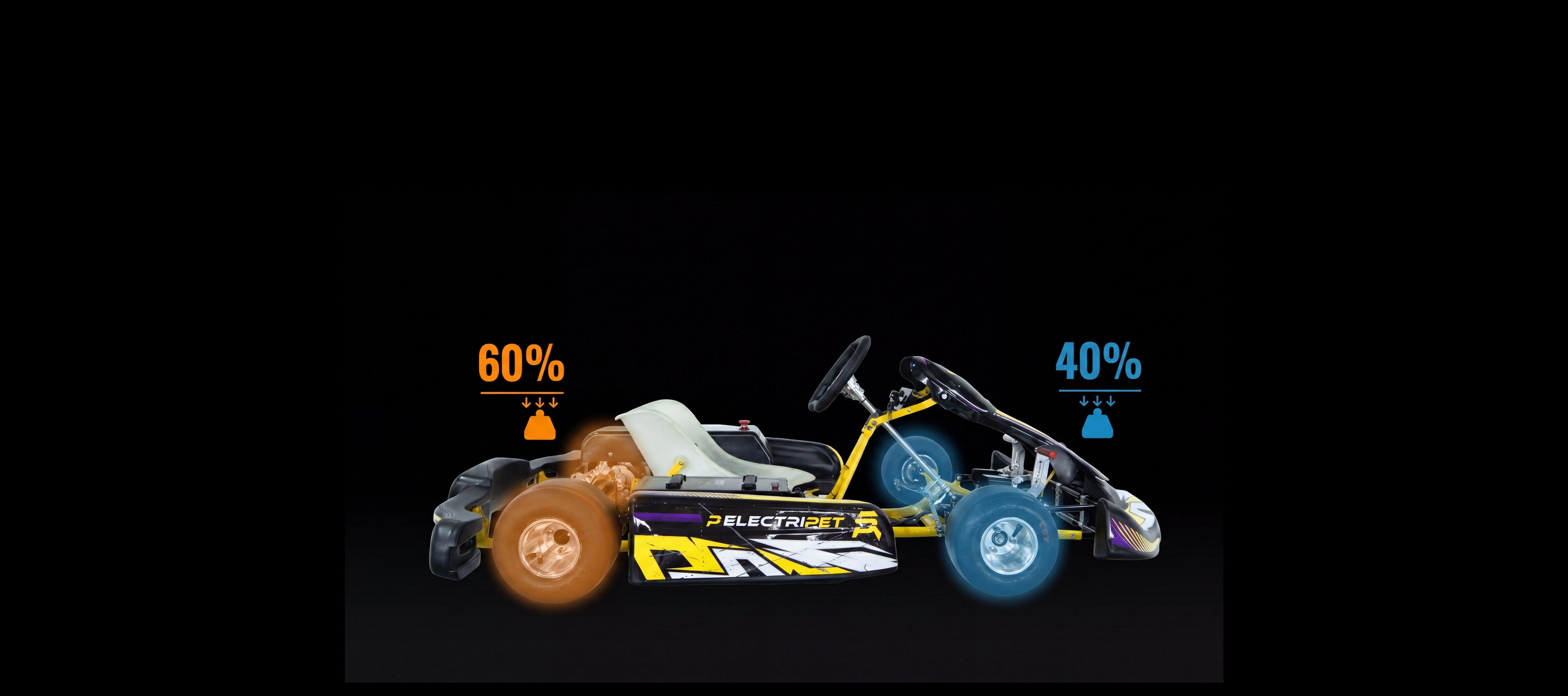

The SUPEREGO has an RR design:The rear engine and the rear-wheel-drive are set up like supercars.The weight distribution is designed with 40% front and 60% rear.
HIGH TRACTION HOT MELT TIRE
Our racing tires are designed for high-performance driving, providing exceptional grip and handling.Whether it's intense racing or high-speed driving, these tires offer unparalleled stability and speed.

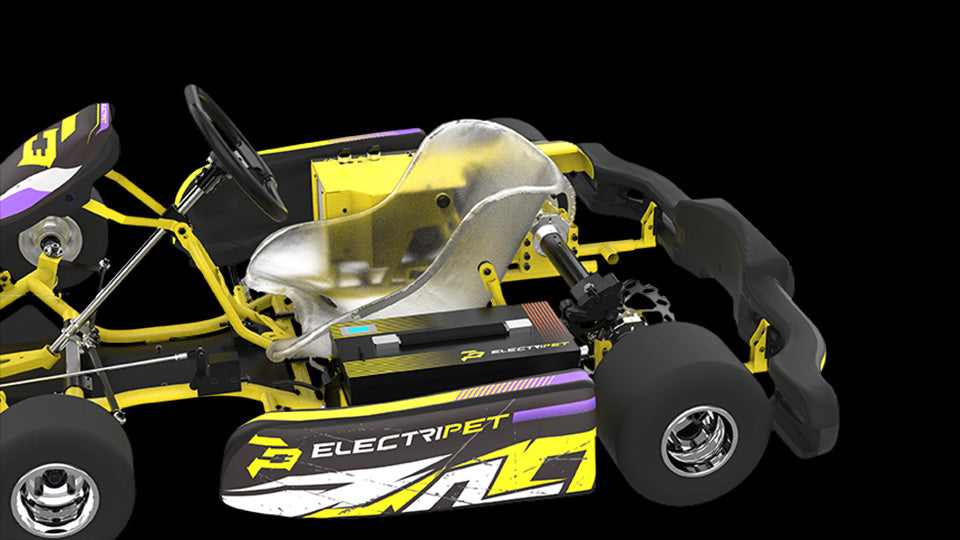

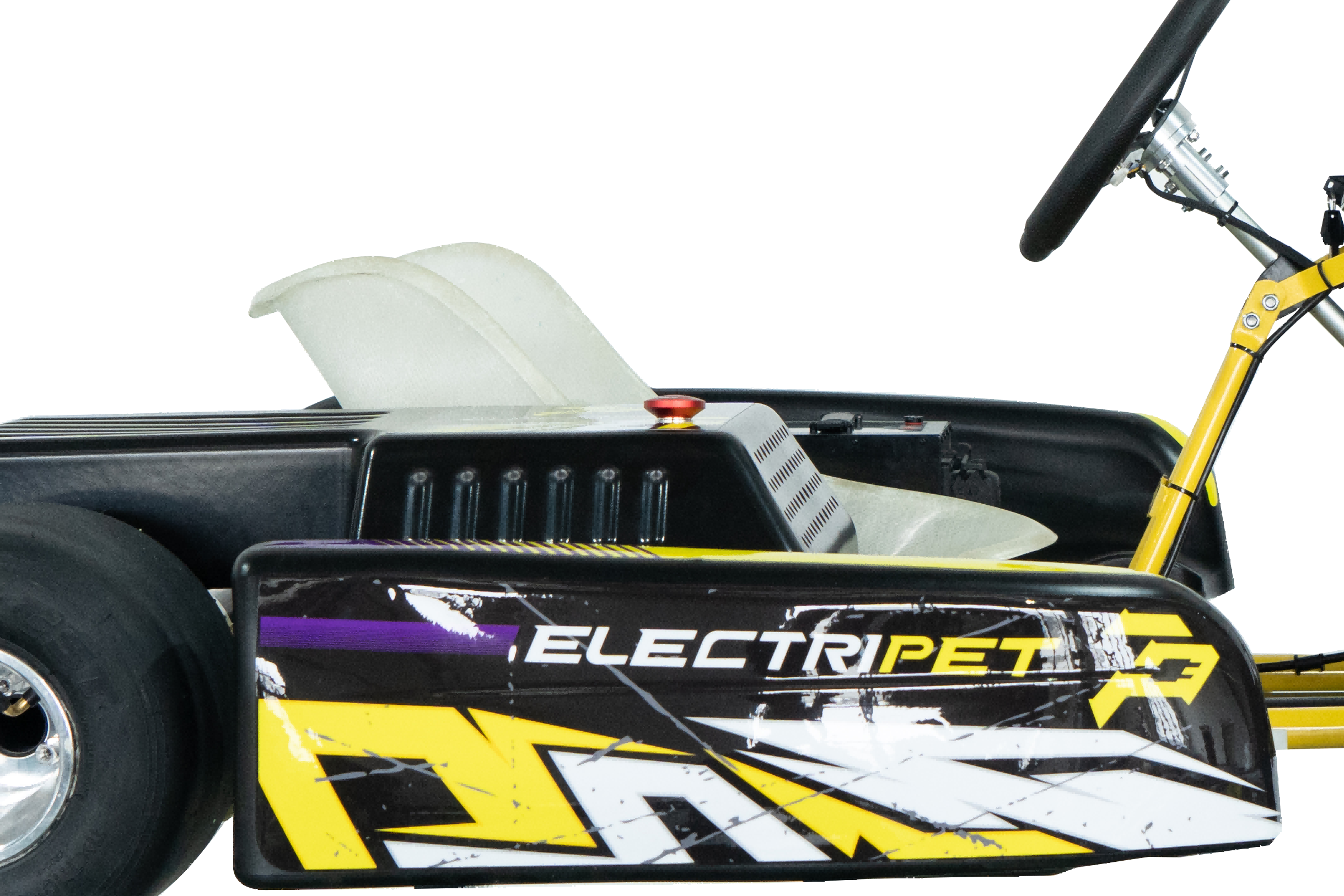

TRANSPARENT FIBERGLASS SEAT
Durable and stylish! Our fiberglass seats are made with high-strength composite materials, offering excellent durability and load-bearing capacity.

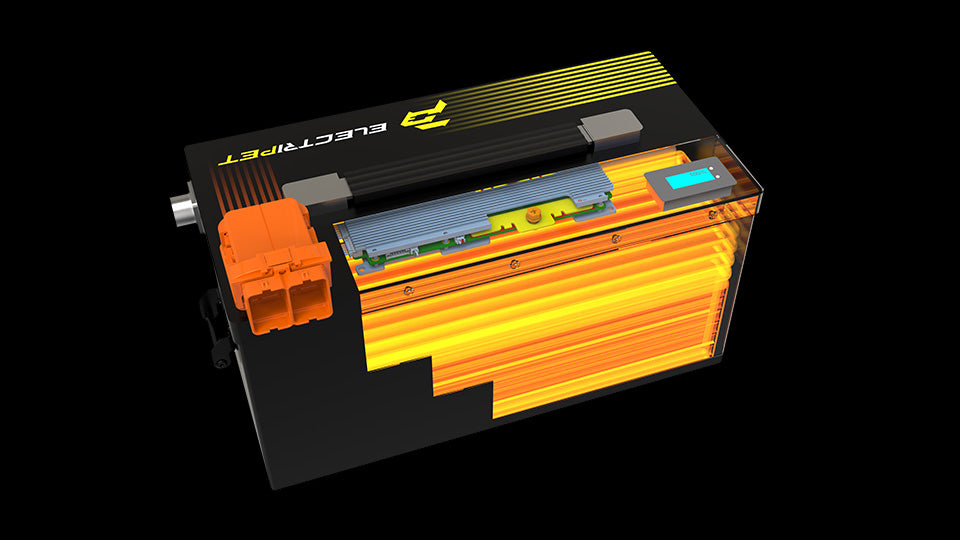

TERNARY LITHIUM BATTERY
Protection level IP67, equipped with a safe and efficient battery BMS management system.

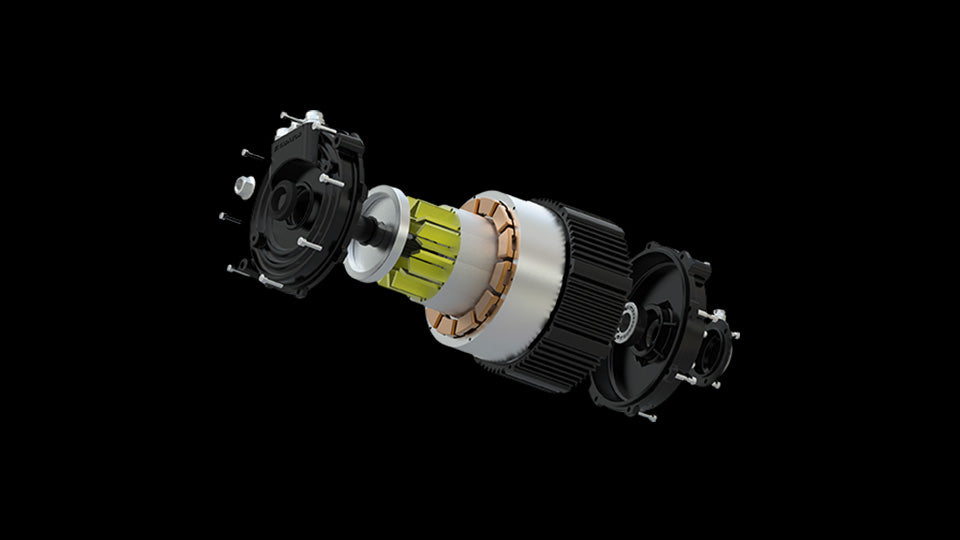

HIGH-EFFICIENCY MID-MOUNTED MOTOR
IP67 protection level, withstanding temperatures up to 155 ° C,High efficiency,Rapid response,Exceptional stability and precision ,Long life and low maintenance costs.

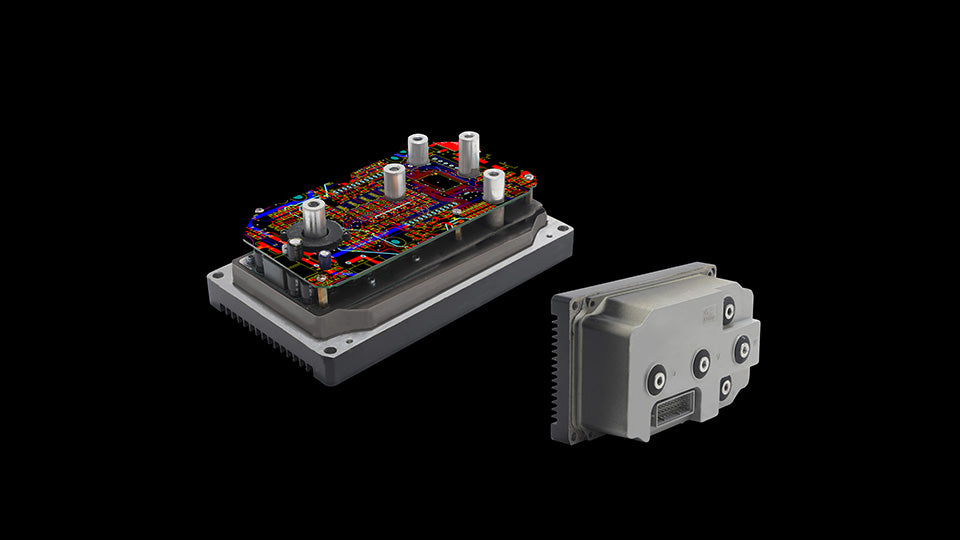

REALIZE KINETIC ENERGY RECOVERY, REAL-TIME MONITORING OF SPEED AND TORQUE
IP67 protection level, I / O port anti-interference design ,Reliability and stability ,Ease of Maintenance and Upgrade.

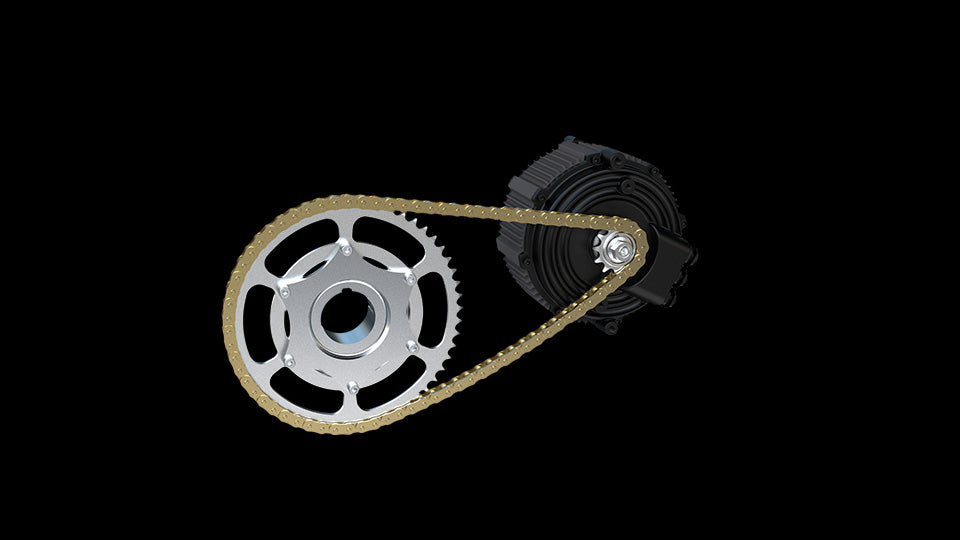

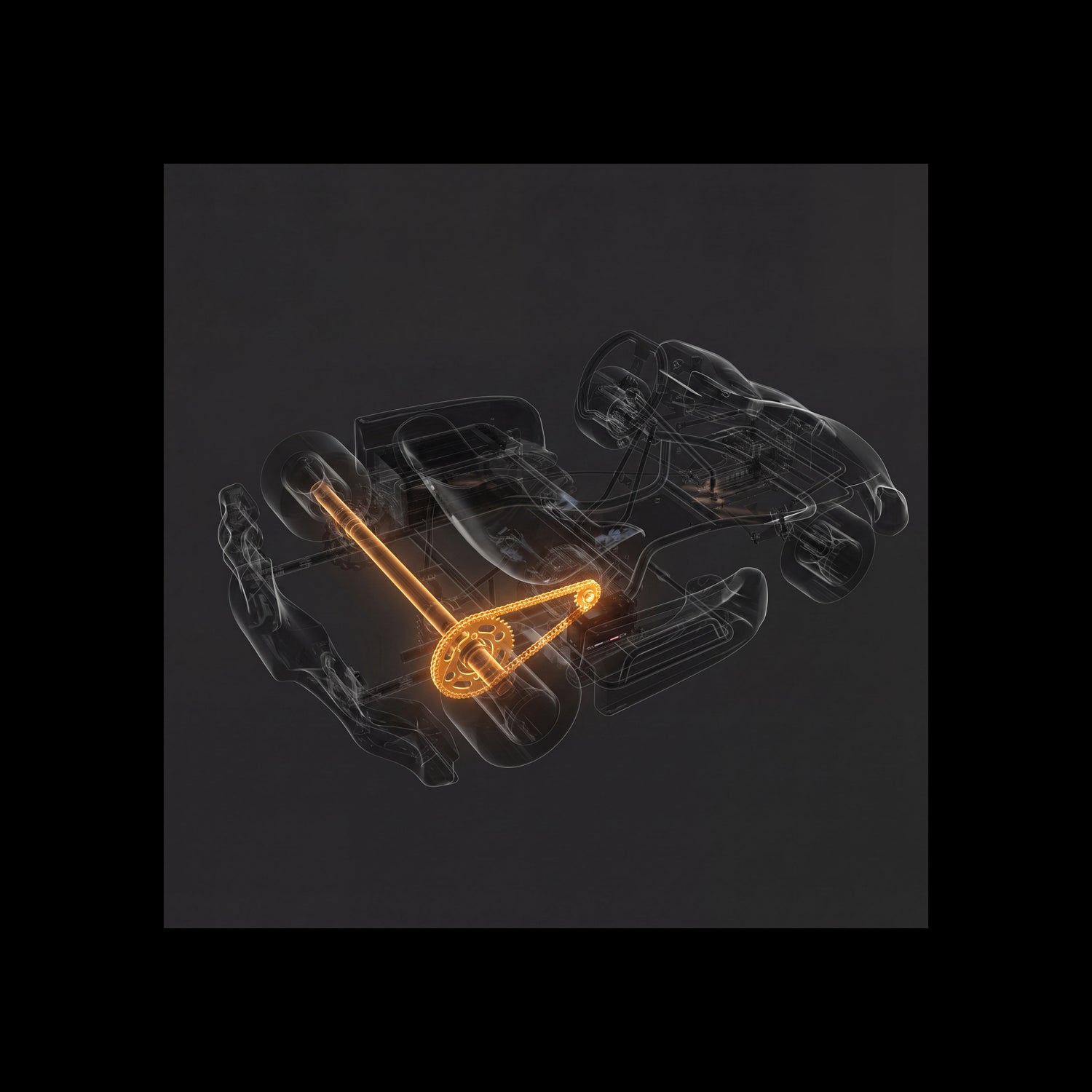

CHAIN DRIVE
High efficiency, direct power transmission : experience real-time feedback of power output,enhancing driving Experience,Durability,low cost,safety and reliability.
REAR BRAKE DISC
227mm solid brake disc with 4-piston caliper and sintered brake pads,More flexible and safer braking,Give you enough confidence in your control.
-
BUTTON
Knob switch,Integration forward and backward,high-speed and low-speed modes.
-

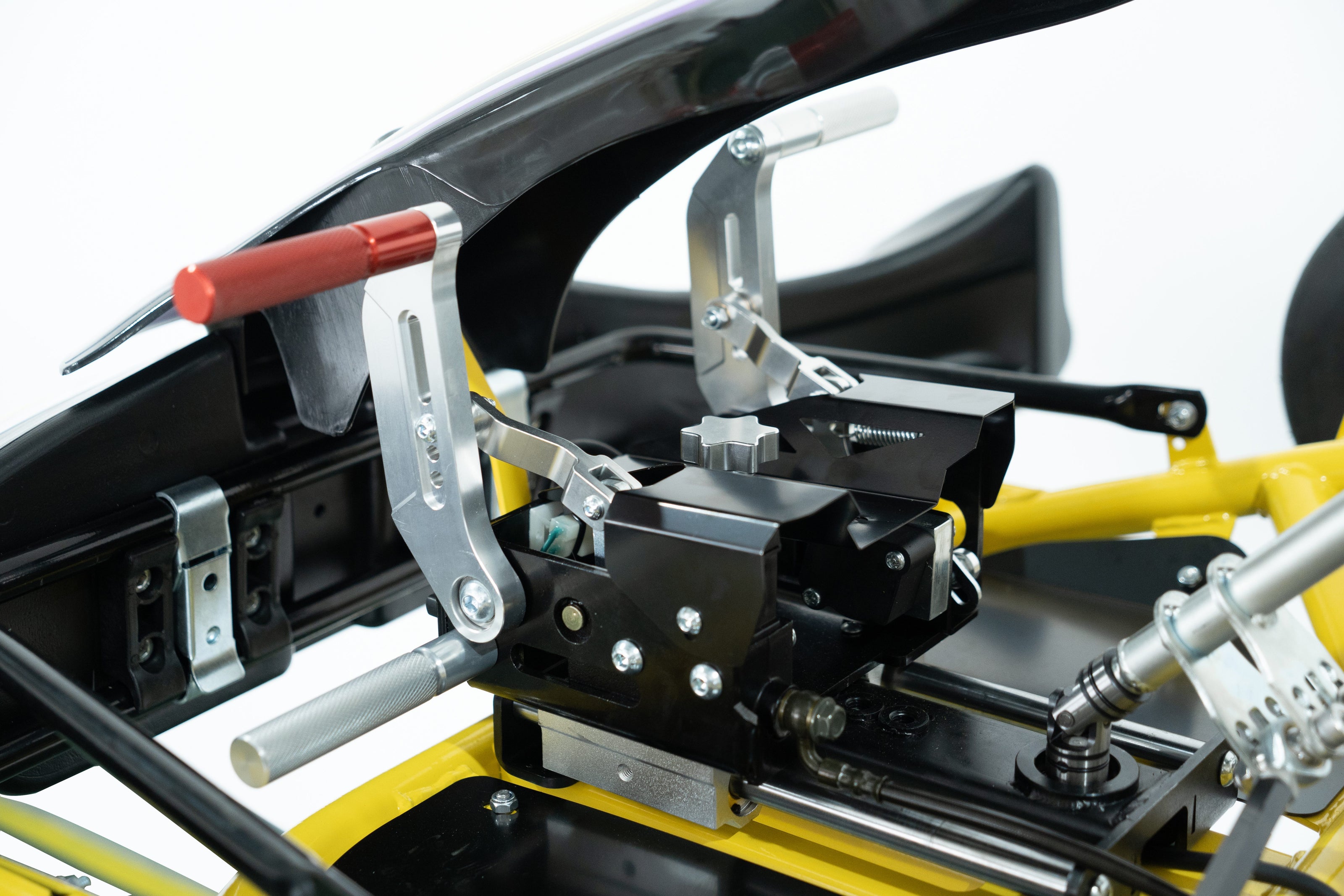

MOVABLE FOOT LEVER
Adjust lever according to the driver 's height and seat position, enhancing comfort and control of braking and acceleration.
-
REAR AXLE
The diameter of the rear axle is 50mm and the length is 1040mm. Ensure the rear wheels maintain stability and predictable movement during driving.
Parameter Details
Size
Size: length 1880mm, width 1100mm, height 500mm
Weight(Inc. battery): 140kg
Ground Clearance: 30mm
Speed
Top Speed:
80 km/h (49.7 mph)
Range : 10 laps=12 km @ 80 km/h
(7.45 miles @ 49.7 mph)
Frame
Frame Material: Cr-Mo Steel Pipe
Rear Axle Material: 50mm Grade 45 Steel Pipe
Braking System: Race Grade Hydraulic Brake Kit
Transmission System: Chain-Drive
Wheel Material: Aluminum Alloy

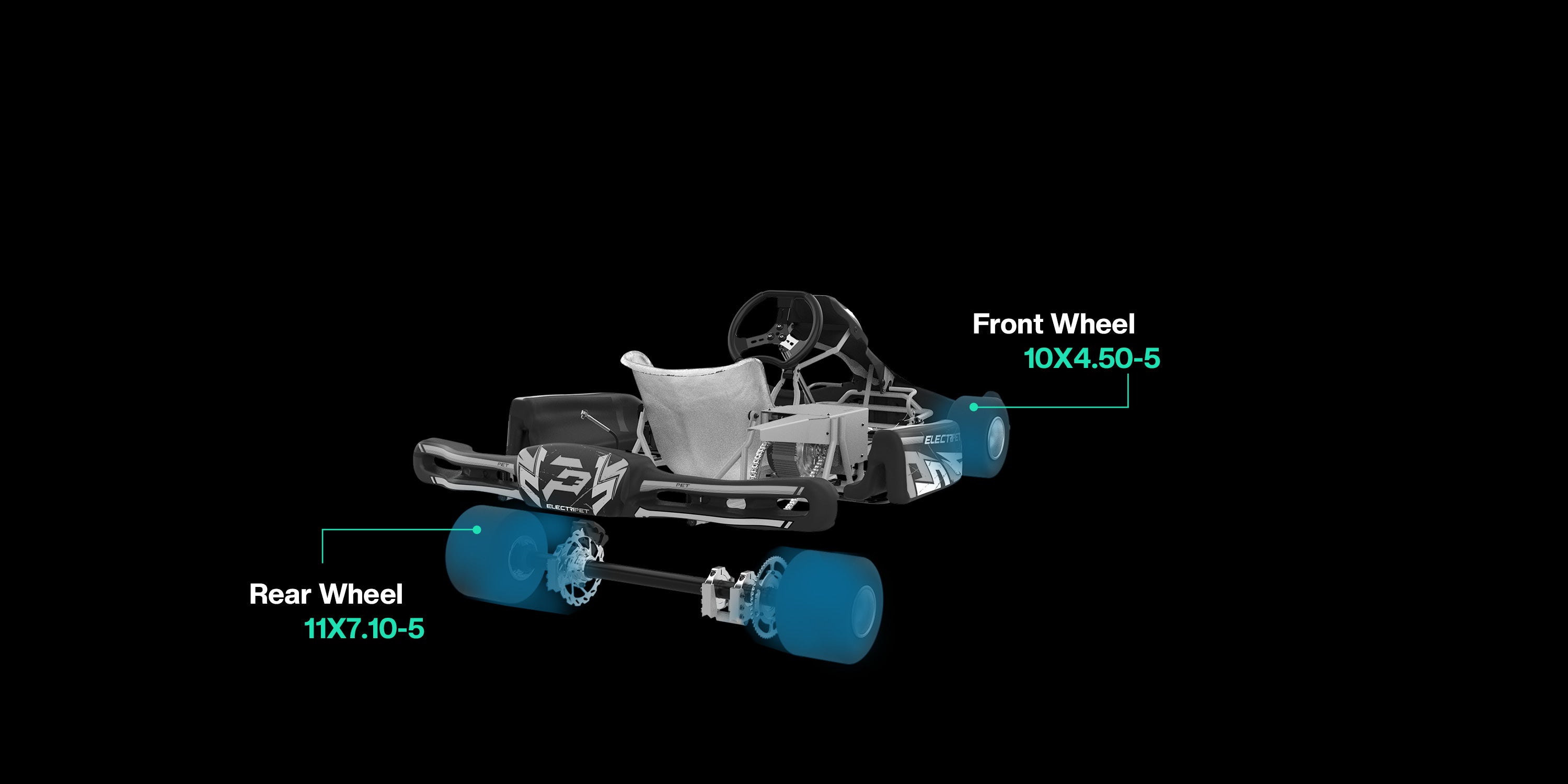

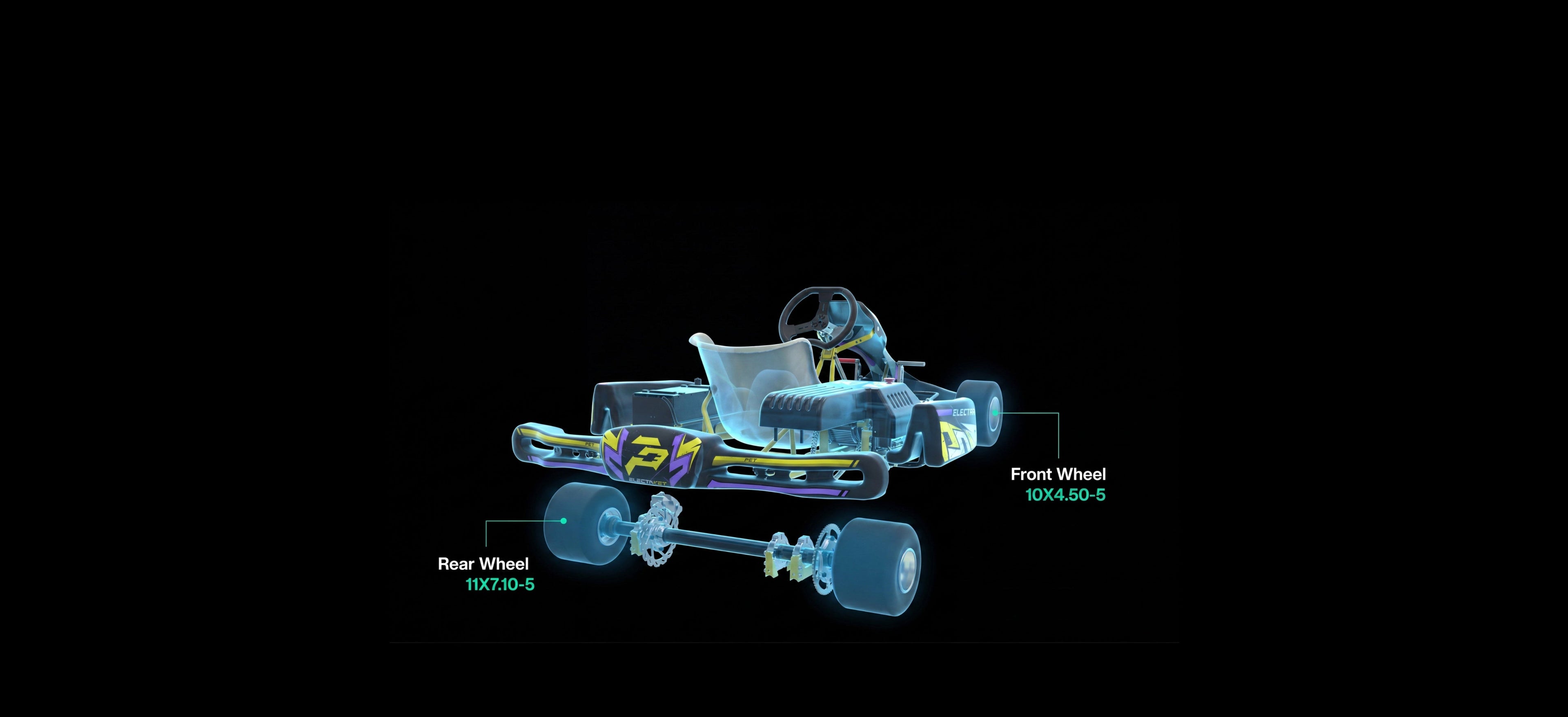

Tires and Sizes: Front wheel 10x4.50-5, Rear wheel 11x7.10-5
Seat Material: Fiberglass
Power & others
Power System: PMSM+ FOC Sinewave Controller
Peak Power: 12kw
Controller Type: FOC
Rated Voltage: 72V
Intelligent Control: Mobile app interconnection, Multiple modes optional
Start: Power Switch
Baterry: 72V 55Ah on a Single Battery
Baterry Material: Lithium Ternary
Charging Time: Fast : 20-80 % In 2 Hours
Slow: 0-100 % In 4.5 Hours
Instrument: GPS Smart Meter
